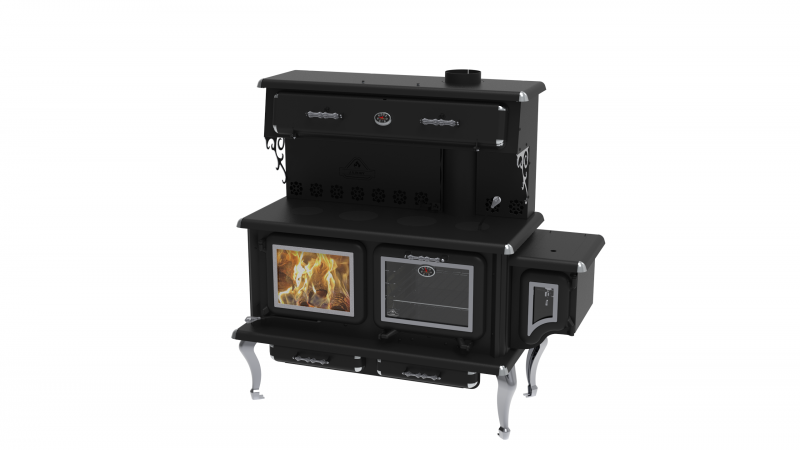

Newton LX

Newton LX

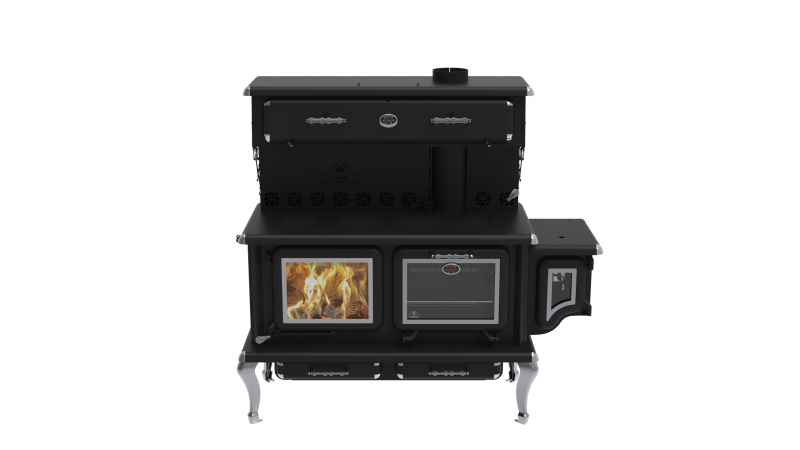

Newton LX - Image 2

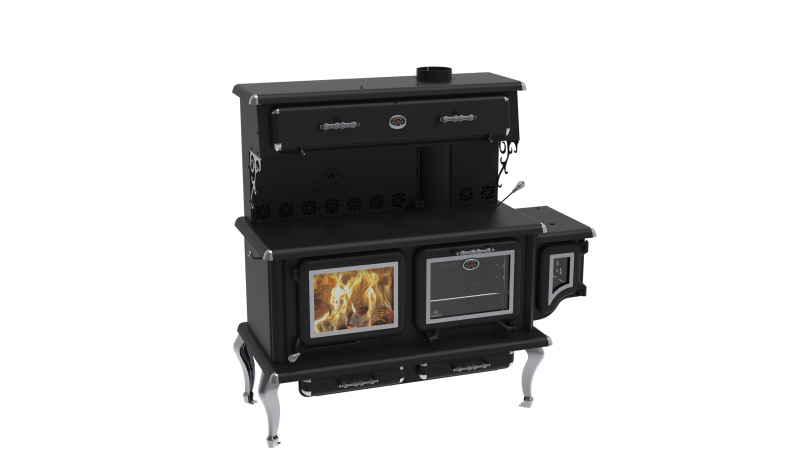

Newton LX - Image 3

Newton LX

$5,939.00

  • High-efficiency wood cookstove, certified under CSA B415.1-10
  • Designed for both heating and cooking
  • Metallic black finish with chrome accents
  • Heating area: 1,000 – 2,500 sq. ft.
  • Three cast iron doors
  • Large cooking area: 16 in. x 47 in.
  • Glass oven door
  • Food warmer with built-in thermometers
  • Convection and radiation heating system
  • Stainless steel secondary air system for improved combustion
  • Low emissions: 1.02 g/h
Download Catalog
Category: ,
Categories: ,
Compare
Download Catalog
Categories: , Tag:

Description

The Newton LX model is a high efficiency wood cookstove certified CSA B415.1-10

FEATURES

Model with three cast iron doors
High efficiency CSA B415.1-10
EPA Exempt certified
Recommended Heating Area: 1,000 – 2,500 sq. ft.
Color: Metallic black
Model black cast iron legs
Handles, corners, trim door and chromed ornaments
Convection and radiation heating system
Glass air-wash system
Storage drawers
Cooking area 16” X 47”
Glass oven door
Food warmer
Thermometers on oven and food warmer
Low clearance to combustible material
Baffle: Fiber ceramic
Outdoor air intake
Firebox lined with refractory bricks for better heat distribution
Stainless steel secondary air system improving gas combustion
Recommended chimney: 6″
Low emissions 1.02 g/h
LHV 79.46%
Log length: 19″
Tested as per applicable standards by Intertek

Options

Decorative black top and mirror (TDDNM)
Decorative chrome top and mirror (TDDCM)
Outdoor air intake package kit (ECPAE)
Additional oven rack for cookstove (CUISINIEREGF)
Chrome cast iron legs
Black enameled cast iron cooking plate, right (PLAQUECUID)
Black enameled cast iron cooking plate, left (PLAQUECUIG)

Specifications

Type of fuel Wood
Recommended heating area 1,000 – 2,500 sq. ft.
Maximum output 95,000 BTU
Firebox dimensions Width 18 ¼”, Height 10 ¾”, Depth 20″
Door opening dimensions 15 ¾” x 10 ¼”
Maximum log length 19″
Exteriors dimensions Width 62 ½”, Height 58 3/8″, Depth 28 5/8″
Type of chimney 2100° F
Exhaust pipe diameter 6″
Recommended chimney diameter 6″
Minimum chimney height 12′
Minimum clearances to combustibles Back 16 3/8″, Side 12″, Corner 10″, Top 84″ (measured from floor)
Weight 640 lbs
Standard test – US emissions US EPA Method 28R
Standard test – Canada emissions CSA B415.1-10
Warranty Limited lifetime

Specification

Type of fuel Wood
Recommended heating area 1,000 – 2,500 sq. ft.
Maximum output 95,000 BTU
Firebox dimensions Width 18 ¼″, Height 10 ¾″, Depth 20″
Door opening dimensions 15 ¾″ x 10 ¼″
Maximum log length 19″
Exteriors dimensions (W x H x D) Width 62 ½″, Height 58 ⅜″, Depth 28 ⅝″
Type of chimney 2100° F
Exhaust pipe diameter 6″
Recommended chimney diameter 6″
Minimum chimney height 12′
Minimum clearances to combustibles Back 16 ⅜″, Side 12″, Corner 10″, Top 84″ (measured from floor)
Weight 640 lbs
Standard test – US emissions US EPA Method 28R
Standard test – Canada emissions CSA B415.1-10
Warranty Limited lifetime
