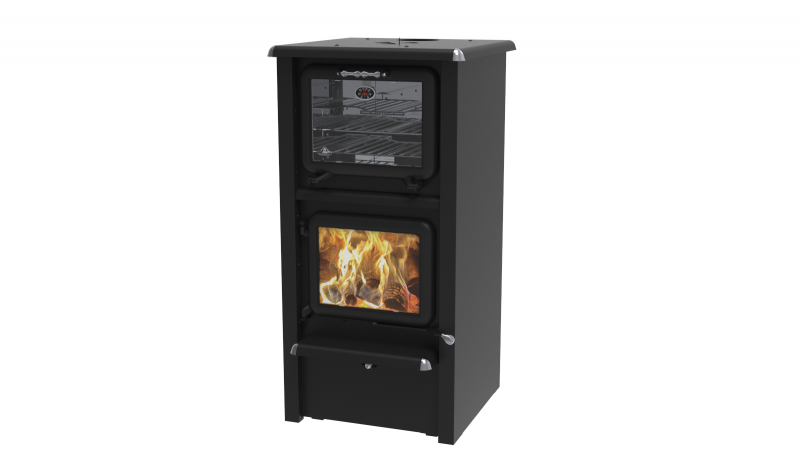

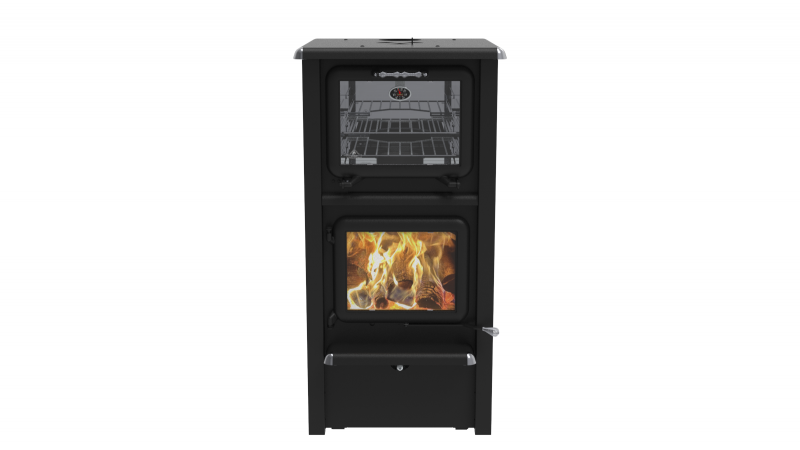

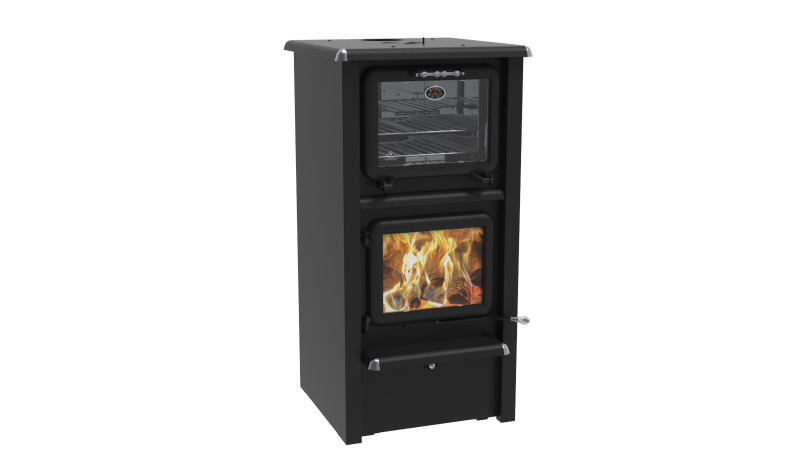

Gemini

$3,280.00

  • Cast iron arched door on the firebox with square door on the oven
  • High efficiency, US EPA NSPS 2020 and CSA B415.1 certified appliance
  • Recommended heating area: 1,000 – 3,000 sq. ft.
  • Color: metallic black
  • Model: Freestanding
  • Two chrome oven racks
  • Oven on top with thermometer
  • Hot air exhaust hatch on top of the oven
  • Convection and radiation heating
  • Self-cleaning system of the glass surface
  • Low clearances to combustible materials
  • Ceramic wool baffle
  • Outdoor air intake
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6 in.
  • Low emissions: 1.56 g/h
  • LHV: 77.75%
  • Recommended log length: 16 in.
  • Maximum log length: 22 in.
  • Mobile home certified
  • Tested as per applicable standards by Intertek

Description

The Gemini stove offers a perfect blend of efficiency, performance, and convenience. Its unique design places the oven on top of the woodburning stove, saving space while providing easy access. The stove features a cast iron arched firebox door with a square oven door, two chrome oven racks, and an oven thermometer for precise cooking.

High-efficiency and certified by US EPA NSPS 2020 and CSA B415.1, it is designed to heat spaces from 1,000 to 3,000 sq. ft. The stove delivers both convection and radiation heating and includes a self-cleaning glass surface for easy maintenance.

Built with safety and durability in mind, the Gemini requires low clearances to combustible materials, has a ceramic wool baffle, and a firebox lined with refractory bricks for even heat distribution. It also features an outdoor air intake and a stainless steel secondary air system to improve gas combustion.

With a recommended chimney of 6″, low emissions of 1.56 g/h, a thermal efficiency of 77.75%, and support for logs up to 22″ long, this mobile home-certified stove is tested by Intertek to meet strict standards. The hot air exhaust hatch on the oven top further enhances heat control and distribution.

Specification

Type of fuel Wood
Recommended heating area 1,000 – 3,000 sq. ft.
Maximum output 55,000 BTU
Firebox dimensions Width 18", Height 15 1/8", Depth 22 ½"
Door opening dimensions 15 1/8" x 9 ¼"
Maximum log length 22"
Exterior dimensions Width 26 1/8", Height 54 7/8", Depth 34 3/8"
Type of chimney 2100° F
Exhaust pipe diameter 6"
Recommended chimney diameter 6"
Minimum chimney height 12'
Minimum clearances to combustibles Back 16 ¾", Side 16", Corner 8", Top 84" (measured from floor)
From collar to back 14 ¾"
From collar to side 23 ¼"
Weight 500 lbs
Standard test – US emissions US EPA NSPS 2020
Warranty Limited lifetime
