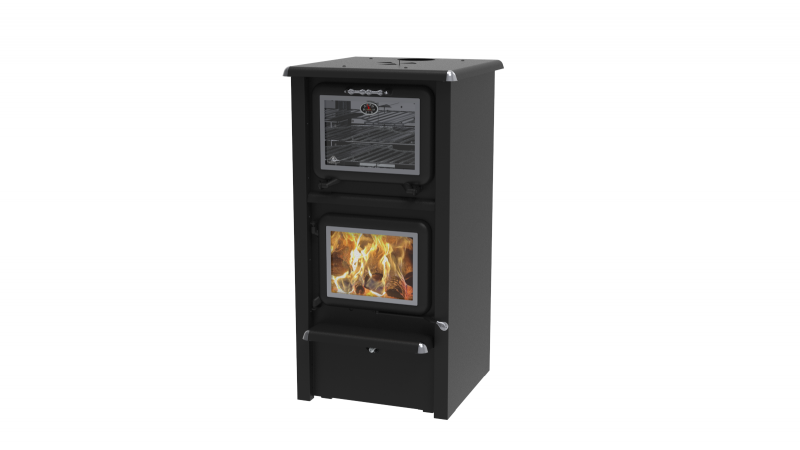

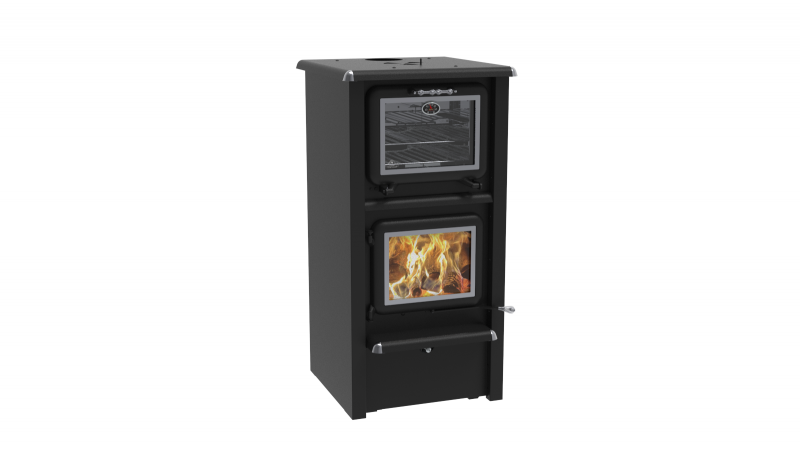

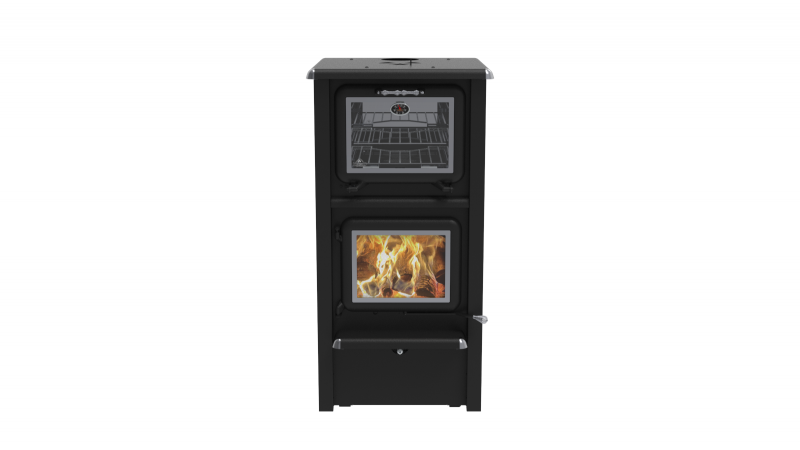

Gemini-R LX

Gemini-R LX
Gemini-R LX - Image 2
Gemini-R LX - Image 3

Gemini-R LX

$3,526.00

  • High-efficiency wood cookstove
  • Heating area: Up to 3,000 sq. ft.
  • Oven located on top
  • Certified by US EPA NSPS 2020
  • Two cast iron doors
  • Self-cleaning glass system
  • Convection and radiation heating design
  • Firebox lined with refractory bricks for better heat distribution

Available Options: Outdoor air intake and blower kits.

Download Catalog
Category: ,
Categories: ,
Compare
Download Catalog
Categories: , Tag:

Description

High efficiency GEMINI-R LX wood cookstove with oven over the top.

FEATURES
Two cast iron square door model
High efficiency US EPA NSPS 2020 certified appliance
Recommended Heating Area: 1,000 – 3,000 sq. ft.
Color: Metallic black
Model: Freestanding
Oven on top with thermometer
2 oven racks
Convection and radiation heating
Self-cleaning system of the glass surface
Low clearances to combustibles materials
Ceramic wool baffle
Outdoor air intake
Firebox lined with refractory bricks for better heat distribution
Stainless steel secondary air system improving gas combustion
Recommended chimney: 6″
Low emissions 1.56 g/h
LHV 77.75%
Maximum log length: 18″
Mobile home certified
Tested as per applicable standards by Intertek
Options
Outdoor air intake package kit (ECPAE)
460 CFM blower with thermodisc (VENT460TH)

Specifications

Type of fuel Wood
Recommended heating area 1,000 – 3,000 sq. ft.
Maximum output 55,000 BTU
Firebox dimensions Width 18″, Height 15 1/8″, Depth 22 ½”
Door opening dimensions 15 1/8″ x 9 ¼”
Maximum log length 18″
Exteriors dimensions Width 26 1/8″, Height 54 7/8″, Depth 34 3/8″
Type of chimney 2100° F
Exhaust pipe diameter 6″
Recommended chimney diameter 6″
Minimum chimney height 12′
Minimum clearances to combustibles Back 16 ¾”, Side 16″, Corner 8″, Top 84″ (measured from floor)
Weight 500 lbs
Standard test – US emissions US EPA Method 28R
Warranty Limited lifetime

Specification

Type of fuel Wood
Recommended heating area 1,000 – 3,000 sq. ft.
Maximum output 55,000 BTU
Firebox dimensions (W x H x D) 18″ x 15 1/8″ x 22 ½″
Door opening dimensions 15 1/8″ x 9 ¼″
Maximum log length 18″
Exterior dimensions (W x H x D) 26 1/8″ x 54 7/8″ x 34 3/8″
Type of chimney 2100° F
Exhaust pipe diameter 6″
Recommended chimney diameter 6″
Minimum chimney height 12′
Minimum clearances to combustibles Back: 16 ¾″ | Side: 16″ | Corner: 8″ | Top: 84″ (measured from floor)
Weight 500 lbs
Standard test, US emissions US EPA Method 28R
Warranty Limited lifetime

DIY Installation Guide

Step-by-step guidance to help you install your stove or heater safely and confidently.

Coming Soon — Check back shortly for installation videos, tips and guides
